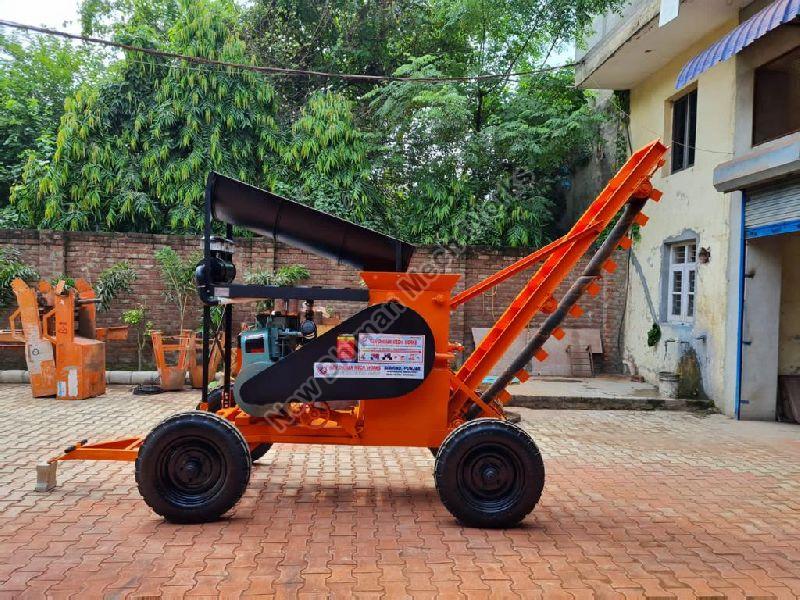

Brick Crusher Machine with Conveyor




We deal in manufacturing and supplying an extensive gamut of Brick Crusher Machine with Conveyor. Brick Crusher Machine with Conveyor comes with 30mm plates, so that the bricks can be crushed easily. It has a 12 H.P. diesel engine which makes it work faster. Brick Crusher Machine with Conveyor is efficient as well as durable.

Specification of Brick Crusher with conveyor :

  • Frame  :  Made from heavy duty M.S plates size 16mm,14mm.
  • Channel size : 100x50, Angles, Nut-Bolts and other needful accessories.
  • Tyre  :  Old Tyre (Rubber sole)No of Tyre 4, along with Heavy Duty Taper Roller Bearing for Easy Rotation.
  • Driven by  :  12 H.P. Diesel Engine with Mico Pump Set or 7.5 H.P. Crompton Greaves Electrical Motor.
  • Crushing Unit  :  To be made from Heavy Duty 30 mm Plates to Crush Bricks easily.
  • Flying Wheel Nos.  :  Heavy Duty made from Cast Iron for Easy rotation of Machine & Helpful to Engine Mounted On Heavy Taper Roller Beaings.
  • Shaft  :  Length-850mm Thickness -102mm
  • Input  :  Normal Size brick & stone (244x100x75mm) approx.
  • Output  :  Size of Crushed pieces can be adjusted.
  • Maximum Size  :  65mm (Approx)
  • Minimum Size  :  20mm(Approx)
  • Capacity  : 1.9Cubicmeters/hour
  • Dimensions in MM(LxBxH) : 1828x1219x1524
  • Benefit of conveyor  :  It can easily load the crushed pieces directly to the Trolley.
