Suspended Cradle System

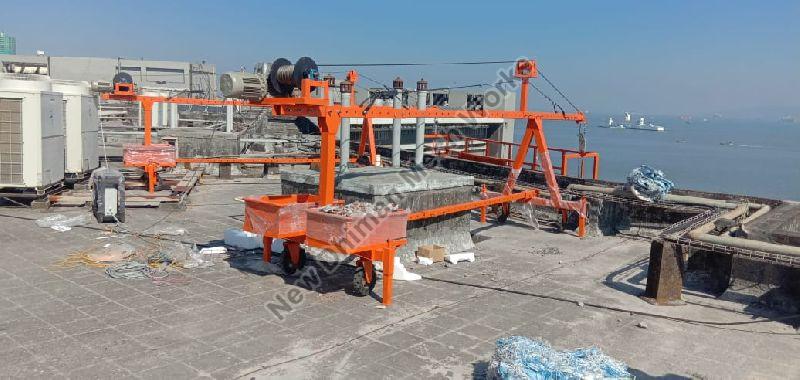

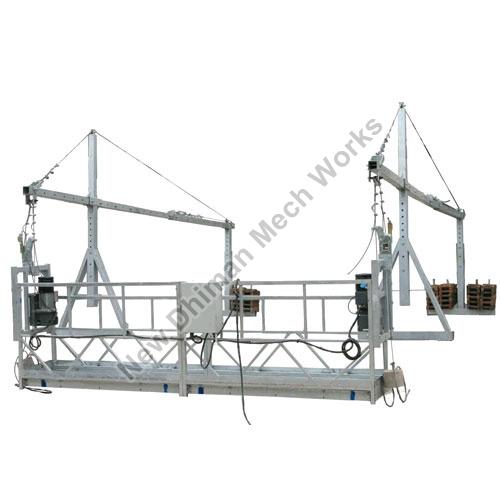

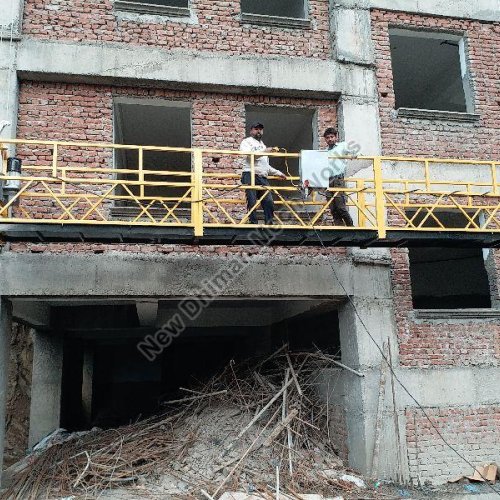

Suspended Cradle System can be used for external brickwork, plastering, painting, finishing etc. Our array of Suspended Cradle System consists of an electrically operated hoisting machine, incorporating a cable guidance system and anti-inclination as well as speed limit safety locks. Suspended Cradle System is easy to install on the roof of a building. The height of the suspension jib and the projecting length (front beam) is adjustable so that it can easily adapt to different facades and roof structures.



Features :

  • Optimum quality
  • Durability
  • Long service life



Specifications :

  • Platform Size  : 2.5 mts x 3
  • Ascend Speed (working speed) 9-11 m/min
  • Rated Lifting Force : 5KN
  • Voltage : AC 415V 3 Phase
  • Suspended mechanism steel
  • Front Beam Extension : 2000 mm
  • Material of Platform-steel platform
  • Wire rope : 150 one side boom make usha mortin
  • Electric motor 3HP 2 motors with electric brake
  • Safety lock tilt proof safety lock (2 No.'s)
  • Height Adjustment with jack system
  • Delivery : Ready Stock
  • Rated Load : 800 kgs.

Specifications

Weight 100-1000kg
Voltage 220V
Rated Power 1-3kw
Automatic Grade Automatic
Driven Type Elecric
Warranty 1year
